Name: 100w 200w 12v 24v 48v 100w Flex Solar Panel RV Mono ETFE PET
Brand: JTN, OEM
Price: 0.15 USD

Brand Name : JTN, OEM

Model Number : JTN-M100W-B

Place of Origin : Guangdong, China

Packaging Details : packing in carton box

Supply Ability : 5000000 Piece/Pieces per Month

MOQ : 1000 watts

Price : $0.15 - $0.58/watts

Cell size : 125mmx125mm

Panel Dimensions : 1175*540*3mm

Panel Efficiency : 19-22.5%

Product name : Flexible Solar Panels

Waterproof : IP65

Support : OEM/ODM

Warranty : 1 year

Solar cell : Monocrystalline

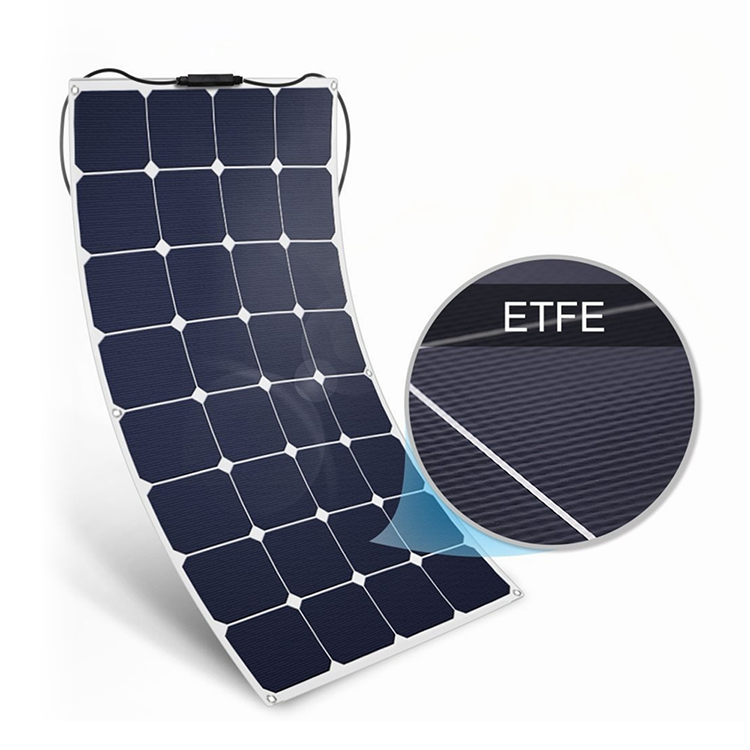

Surface material : PET/ETFE/GLASS

Size(CM) : 220*64*3

Weight : 2KG

Application : Home Commercial Solar System

Port : Shenzhen

Contact Now

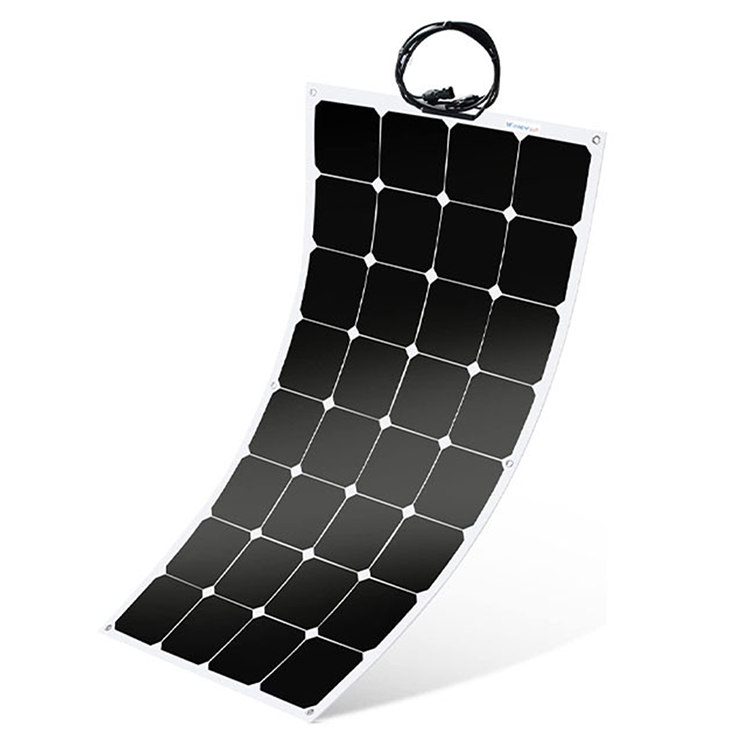

PET ETFE Flexible solarpanel 100w 200w 12v 24v 48v Mono Flexible Solar Panel

Products Description

Model	JTN-(XXX)W-B (XXX)=Pmax/W						JTN-(XXX)W-B (XXX)=Pmax/W
Maximum Power(Pmax/W)	100	150	160	200	250	300
Open-circuit Voltage (Voc/V)	21.6	32.14	21.6	43.4	33.33	39.3
Short-circuit Current (Isc/A)	6.1	6.1	9.7	6.1	9.9	10.08
Maximum Power Voltage(Vmp/V)	18	26.8	18	36.2	27.8	32.75
Maximum Power Current (Imp/A)	5.6	5.6	8.9	5.5	9	9.16
Solar Panel Efficiency(%)	19.8-22.5%						19.8-22.5%
Power Tolerance(W)	0~+5W						0~+5W
Standard Test Environment	Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

Model	JTN-(XXX)W-B (XXX)=Pmax/W
Maximum Power(Pmax/W)	350	400	500	Customizable
Open-circuit Voltage (Voc/V)	66.67	68.57	81.1	/
Short-circuit Current (Isc/A)	6.93	7.7	8.14	/
Maximum Power Voltage(Vmp/V)	55.56	57.14	67.57	/
Maximum Power Current (Imp/A)	6.3	7	7.4	/
Solar Panel Efficiency(%)	19.8-22.5%	19.8-22.5%	19.8-22.5%	19.8-22.5%
Power Tolerance(W)	0~+5W
Standard Test Environment	Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

Company Profile

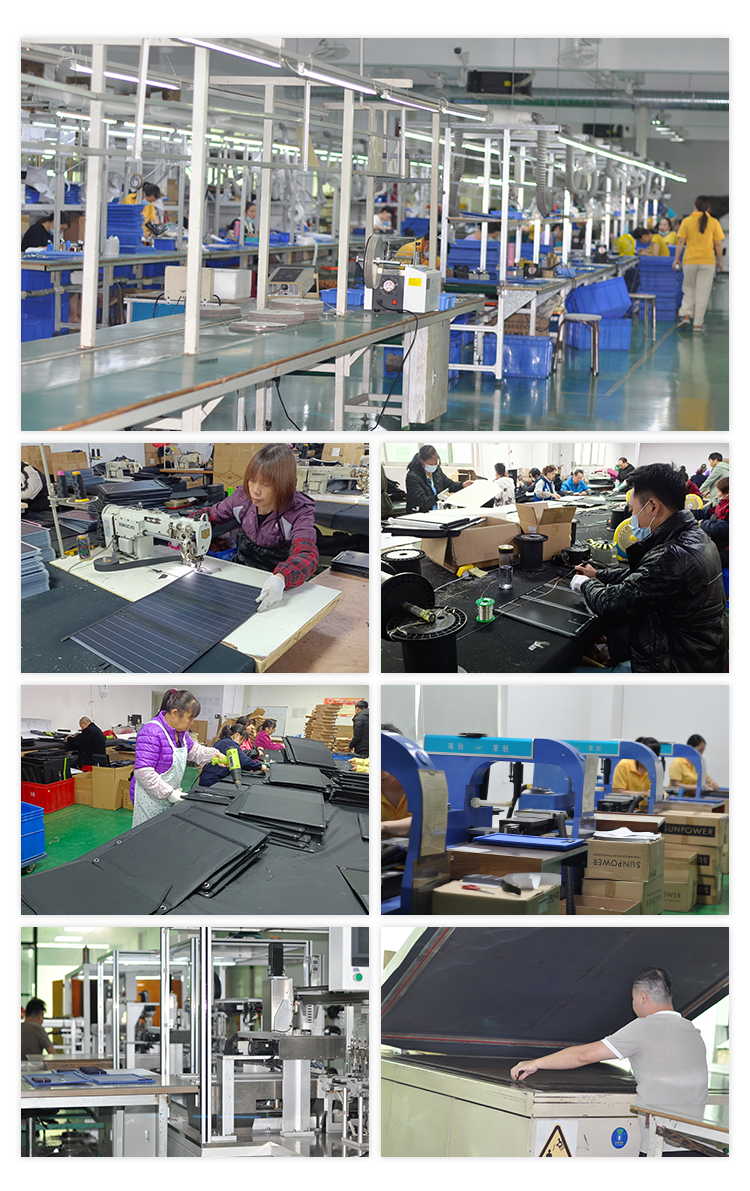

Factory

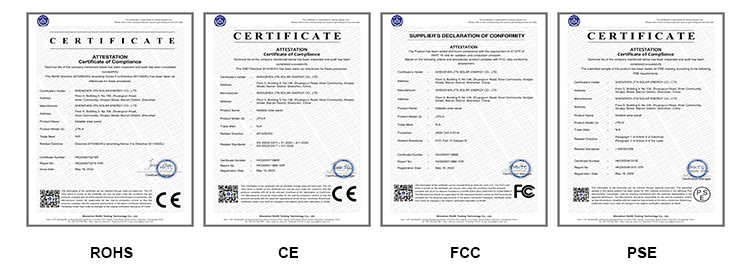

Certifications

Packing & Shipping
